imageopenpolygon
(PHP 7 >= 7.2.0)
imageopenpolygon — Draws an open polygon
说明
imageopenpolygon
( resource
$image
, array $points
, int $num_points
, int $color
) : bool
imageopenpolygon() draws an open polygon on the given
image. Contrary to imagepolygon(),
no line is drawn between the last and the first point.
参数
-
image -
由图象创建函数(例如imagecreatetruecolor())返回的图象资源。
-
points -
An array containing the polygon's vertices, e.g.:
points[0] = x0 points[1] = y0 points[2] = x1 points[3] = y1 -
num_points -
Total number of points (vertices), which must be at least 3.
-
color -
颜色标识符使用 imagecolorallocate() 创建。
返回值
成功时返回 TRUE， 或者在失败时返回 FALSE。
范例
Example #1 imageopenpolygon() example
<?php
// Create a blank image
$image = imagecreatetruecolor(400, 300);
// Allocate a color for the polygon
$col_poly = imagecolorallocate($image, 255, 255, 255);
// Draw the polygon
imageopenpolygon($image, array(
0, 0,
100, 200,
300, 200
),
3,
$col_poly);
// Output the picture to the browser
header('Content-type: image/png');
imagepng($image);
imagedestroy($image);
?>

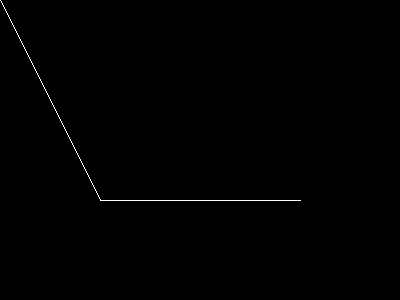

以上例程的输出类似于：
